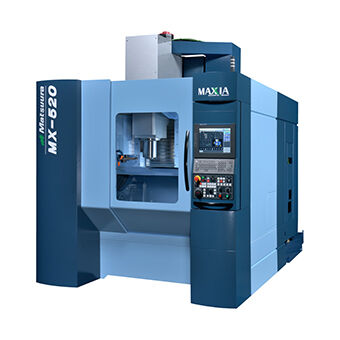

MX-520
מכונת כרסום ורטיקלית, 5 צירים, תוצרת Matsuura
Launched to much acclaim globally in 2010, the MX-520 is a single table 5 axis machine tool primarily aimed at companies making the transition from 3 to 5 axis operations - although installations to date show that established users of Matsuura MAM72 products are also investing in this versatile machine tool.
| Travel: X / Y / Z | mm | 630 / 560 / 510 |
| Travel: A / C | deg | -125~+10 / 360 |
| Working Surface | mm | Ø300 STANDARD Ø500 OPTION |
| Max. Work Size | mm | Ø520~H350 |
| Loading Capacity | kg | 150 |
| Spindle Speed | min-1 | 12,000 : BT40 STANDARD 20,000 : BT40 OPTION |
| Rapid Traverse: X / Y / Z | m / min | 30 |
| Rapid Traverse: A / C | min-1 | 10 / 25 |
| Number of Tools | 60 | |
| Type of tool shank | JIS B 6339 40T | |
| Maximum tool diameter | mm | Ø96 with adjacent tools Ø150 without adjacent tools |
| Maximum Tool Weight | kg | 10 |
| Tool Changing Time | Seconds | 1.1 |
| NC | Matsuura G-Tech 31i |
