2SP-150H
אלבה > מוצרים וספקים > ייצוג חברות > מכונות מבית OKUMA > מכונות חריטה > מכונות חריטה הוריזונטליות > 2SP-H Series > 2SP-150H

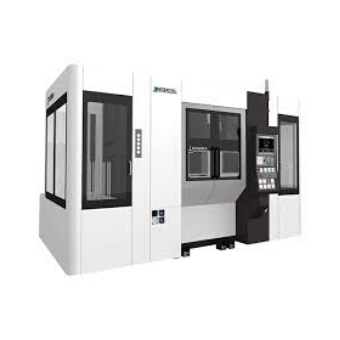

OKUMA CNC LATHE MODEL 2SP-150H OSP-P200LA CNC CONTROLLER INCLUDING CE-MARK & EMC
מחרטה ממוחשבת, תוצרת OKUMA, יפן
European Standard Specification:
- Main spindle motor, VAC 11/7.5kW (30min./cont.)
- Spindle speed, 50 - 6,000 min-1
- Spindle bore dia. 52 bore, nose 140 flat
- V12+ V12 turret, NC non lift (tool holders included)
- Coolant supply system, AC 0.8 kW X 2 pump motor
- Work light, water-proof fluorescent lamp
- Totally enclosed swarf & coolant shield
- Coolant tank for rear disposal, not incl. Chip pan
- Foundation washers and leveling jack screws
- Machine lifting hooks
- Pre-arrangement for 3-axis loader
- Loader safety cover
- Top ceiling door open/close
- Loader controller for 1 carrier
- 6" hydraulic chuck B206,hydraulic cylinder RNKP105-15B and draw bar
- Chuck auto open/close by M-code with confirmation
- Chuck air blower
- Double type chuck operation pedal
- Lubrication monitor B-1
- CE mark , EMC and IEC standard
Standard toolings
- OD tool holder type I-M x4
- OD tool holder type II-M x4
- ID tool holder base H40M x8
- Small dia block for ID tool holder x8
- Boring bar sleeve 16-H40M x4
- Boring bar sleeve 20-H40M x4
- Drill sleeve MT No.2 x1
OSP-P300L CNC Controller
Max Turning Diameter | mm | Ø 150 |
Spindle Nose Type | Ø 140 flat | |
Spindle Range | min⁻¹ | 50~4,500 |
Standard Power | kW (hp) | 11/7.5 (15/10) |
Rapid Traverse (X/Z) | m/min (ipm) | 24 (945) |
Machine Weight (w/ CNC system) | Kg | 5,000 |
