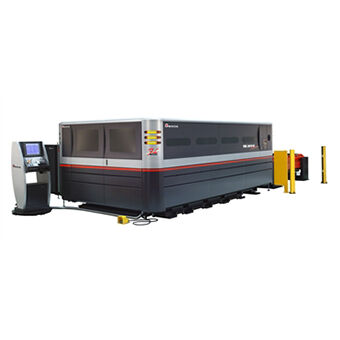

FOL-3015 AJ
FOL-3015 AJ
Introducing a new generation of laser processing; the FOL3015 AJ. Fibre technology from the diode to the workpiece, both machine and beam source are developed by AMADA, providing perfectly synchronised components for optimum performance.
- Increased cutting range - cut copper/brass/titanium
- Fast material processing - 340 m/min linear drives
- Low running costs - 70% electricity saving
- Long maintenance cycles
- Reliable laser beam - superior edge quality
Benefits
Fibre Laser System Developed by AMADA
- Synchronised machine & oscillator for optimum performance
- Fibre beam generation and fibre beam delivery
- 4kW or 2kW fibre laser oscillator options
- Efficient beam delivery
- Flexible factory layouts
Fast Material Processing
- All linear drive axis – 5G & 340 m/min
- Up to 100 m/min cutting speeds
Increased Cutting Range
- Capable of cutting copper, brass and titanium
- High maximum cutting thickness
Low Running Costs
- Up to 70% electricity savings compared to CO2
- No internal mirrors or laser gas
- Long maintenance cycles
- Short power on – off times
Superior Part Edge Quality
- Reliable laser beam
- Modular oscillator for repeatability
- CoolingCut & oil spray function
Reliable Automated Operation
- Automatic pierce & cut process monitoring
- Automatic nozzle changer
- Proven automation options
Easy Operation
- AMNC touch screen control
MODEL | FOL-3015 AJ 2kW | FOL-3015 AJ 4kW |
Laser Power | 2000W | 4000W |
Laser Source | Fibre | Fibre |
Series | AJ | AJ |
Drive System | X/Y/Z Linear | X/Y/Z Linear |
Max Axis Speed (simultaneous) | 340m/min | 340m/min |
Working Range (XxYxZ) | 3070 x 1550 x 100mm | 3070 x 1550 x100mm |
Max Sheet Weight (kg) | 950 | 950 |
Machine Weight (kg) | 14180 | 14200 |
Max Material Thickness: | ||
- Mild Steel | 16mm | 22mm |
- Aluminium | 8mm | 16mm |
- Stainless Steel | 10mm | 18mm |
- Brass | 5mm | 8mm |
- Copper | 4mm | 8mm |
- Titanium | 5mm | 10mm |
Standard Features
X/Y/Z axis linear drives
Automatic nozzle changer
Oil spray function
WACS - Water Assisted Cutting System
Cut process monitoring system
Pierce monitoring system
X Axis scrap conveyor
High-pressure cutting (CleanCut)
Aluminium cutting (AluCut)
Automatic gas pressure control
Automatic pallet changer with shuttle table
AMNC touch screen control
Dust collector
Chiller
Contact free HS cutting head
Integrated air purge unit
