GA series

Safety and No Pollution

• With a fully enclosed design.

• The observation window adopts a European CE Standard laser protective glass.

• The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally.

3rd generation aviation aluminum beam

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061.
T6 is the strongest strength of all beams. Aviation aluminum has many advantages, such a good toughness, lightweight, corrosion resistance, anti-oxidation, low density, and greatly increase processing speed.

The Segmented Rectangular Tube Welded Bed
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guider ail so as to effectively avoid the deformation of the bed.
• High strength, stability, tensile strength, ensuring 20 years of use without distortion;

• Thickness of rectangular pipe wall is 10mm and weights 4500 kg.

Exchanging Platform

• It adopts an up and down exchange platform.

• The converter is responsible for controlling the exchanging motor.

• The fiber laser cutting machine is able to finish the platform exchanging within 15s.

Without Manual Operation, It Can Focus Automatically

• Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thicknesses. The speed of automatically adjusting the focus lens is ten times of the manual adjusting.

• Bigger adjustment range

Adjustment range -10 mm - +10mm, precision 0.01mm, suitable for 0-20mm different types of plates.

• Long service life

The collimator lens and focus lens both have a water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Transmission and Precision

- German Tech Quality

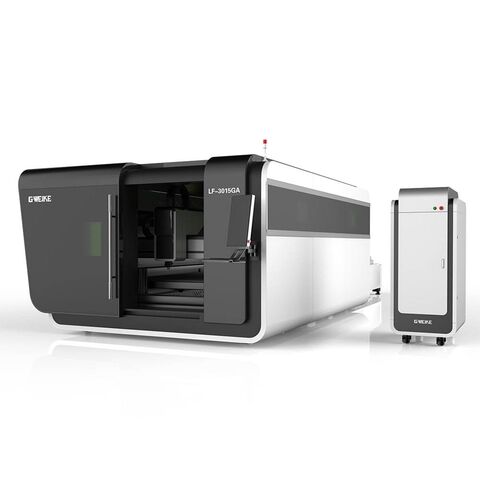

G·WEIKE fiber laser cutting machine ( lf-3015-ga ) is equipped with a German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0. 2mm and the cutting acceleration is 1.5G. The working life is up to 10 years.
