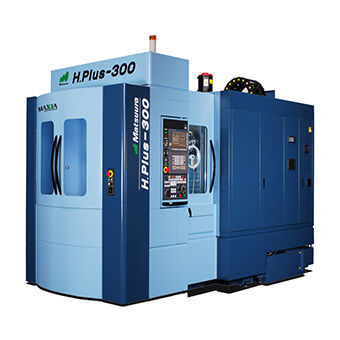

H.Plus-300
מכונת לעיבוד שבבי, תוצרת Matsuura
The Matsuura H.Plus-300 is one of the most popular products in the long heritage of Matsuura horizontal products.
All H.Plus Series machines are available with a myriad of pallet, spindle and ATC configurations - tailored to your process and workload - with proven reliability and exceptional performance as standard.
| Travel: X / Y / Z | mm | 500 / 560 / 500 |
| Travel: B | deg | 360 |
| Number of Pallets | 2 Standard. 5 / 11 / 15 / 17 / FMS Options | |
| Pallet Working Surface | mm | 300 x 300 |
| Max. Work Size | mm | Ø530 x H760 |
| Loading Capacity | Kg | 250 |
| Spindle Speed | min-1 | 15,000: BT40 Standard. 20,000: BT40 Option. |
| Rapid Traverse: X / Y / Z | m / min | 60 |
| Rapid Traverse: B | min-1 | 100 |
| Number of Tools | 51 Standard upto 520 Option | |
| Maximum Tool Length | mm | 300 |
| Maximum Tool Weight | Kg. | 8 |
| Tool Changing Time | Seconds | 2.4 Chip to Chip |
| NC | Matsuura G-Tech 30i / Matsuura G-Tech 840Di |
