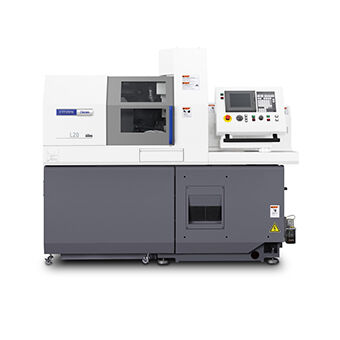

The L20-X offers increased tool flexibility with up to 44 tools capability featuring two Y-axis.
The back working tool post utilises Y-axis control for up to 8 fixed or rotary, end-face or cross working tool holders for increased overlapped machining capability.
Another major feature is the ability to switch between use and a guide busing type and guide bushing-less type. This feature is provided as standard; the guide bushing can be fitted or removed very quickly with a simple operation.
The L20-VIII can be used as a regular guide bushing type lathe when machining long, thin workpieces and as a guide bushing-less type reducing material wastage. Increased main spindle size reduces material wastage and bar preparation requirement. Oversized options are available for up to 25mm diameter material.
| Item | L20VIII | L20IX | L20X | L20XII | |
| Maximum machining diameter | ø20mm and 25mm option | ||||
| Maximum machining length | GB machine | 200mm/1chuck | |||
| GBL machine | Workpiece diameter×2.5mm/chuck | ||||
| Maximum drilling diameter for main spindle | ø10mm | ||||
| Maximum tapping diameter for main spindle(tap,die) | M8 | ||||
| Main Spindle through-hole diameter | ø26mm | ||||
| Spindle speed | Max.10,000min-1 | ||||
| Maximum drilling diameter for gang rotary tool | ø8mm | ||||
| Maximum tapping diameter for gang rotary tool | M6 | ||||
| Gang rotary tool spindle speed | Max.6,000min-1 | ||||
| Rotary tool spindle speed of the opposed tool post | - | ø5mm | |||
| Maximum tapping diameter for rotary tool of the opposed tool post | - | M4 | |||
| Rotary tool spindle speed of the opposed tool post | - | Max.7,500min-1(OP) | |||
| Maximum drilling diameter for back tool post rotary tool | ø5mm(OP) | ø5mm | |||
| Maximum tapping diameter for back tool post rotary tool | M4(OP) | M4 | |||
| Rotary tool spindle speed of back tool post | Max.7,500min-1(OP) | Max.7,500min-1 | |||
| Maximum chuck diameter of back spindle | ø20mm | ||||
| Maximum protrusion length of the back spindle workpiece | 30mm | ||||
| Maximum drilling diameter in back machining process | ø8mm | ||||
| Maximum tapping diameter in back machining process | M6 | ||||
| Back spindle speed | Max.8,000min-1 | ||||
| Number of tools to be mounted | Max.37 | Max.33 | Max.44 | Max.40 | |
| Tool size | Turning tool | □12mm(□13mm, □16mm) | |||
| Sleeve | ø25mm(GDS107,210）ø19.05mm | ||||
| Rapid feed rate | All axis(except Y2 axis) | 32m/min | |||
| Motors | For spindle drive | 2.2/3.7kW | |||
| For tool spindle drive(gang tool post) | 1.0kW | ||||
| For rotary tool drive of Back tool post | std | std | |||
| For rotary tool drive of the opposed tool post | std | std | |||
| For back spindle drive | For back spindle drive | 0.75/1.5kW | |||
| For cutting coolant oil | For cutting coolant oil | 0.4kW | |||
| Input power capacity | 7.3kVA | ||||
| Center height | 1,050mm | ||||
| Weight | 2,350kg | 2,400kg | |||
