LAW-V24
אלבה > מוצרים וספקים > ייצוג חברות > מכונות מבית OKUMA > מכונות חריטה > מכונות חריטה ורטיקליות > LAW Series > LAW-V24
מכונת חריטה ורטיקלית 4 צירים, תוצרת OKUMA, יפן

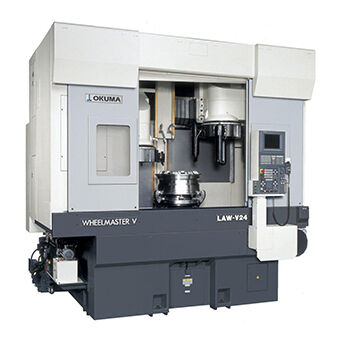

The Okuma LAW-V24 CNC turning center is the latest evolution of Okuma's large 4-axis turning centers for aluminum wheel machining. Two turrets offer dramatic improvements in process flexibility and cycle time when compared to single saddle machines.
The LAW-V24 has 2 independent, 6-station turrets, 3,000 rpm and 87 HP. The large frame and machine travels can machine a 24 inch wheel. The vertical orientation offers superior chucking of large wheels as well as excellent chip removal. 4-Axis is the easy way, with the Okuma THINC-OSP® control, where there is no need to zero return.
| Max Turning Diameter | mm | Ø 660 |
| Spindle Nose Type | JIS A2-11 | |
| Speed Range | min⁻¹ | 200 to 3,000 |
| Spindle Power | kW (hp) | 55 / 45 (75 / 60) |
| Rapid Traverse | mm/min (ipm) | 24,000 (945) |
| Machine Weight (w/ CNC system) | Kg | 13,000 (28,600) |
