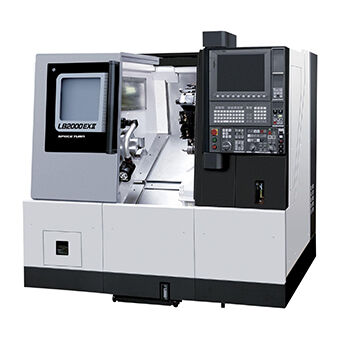

LB-2000-EX

• Main spindle motor Prex 11 / 7.5 kW
• Main spindle speed 50 - 6,000 min-1
• Main spindle dia. 140mm flat nose bore dia. 62 mm
• V12 turret, VDI (No tool holders included)
• Dead sleeve type NC tailstock MT No.4 (For model C 300 only)
• Coolant supply system, 250W pump motor
• Work light, fluorescent lamp
• Totally enclosed swarf & coolant shield
• Door interlock
• Chip pan, side chip disposal
• Foundation washers and leveling jack screws
• Machine lifting hooks
• 6" Hydraulic solid chuck N-06-LB and solid cylinder Y1020R and draw bar
• Revolving center MT No.4 (For model C 300 only)
• Chuck auto open / close with confirmation
• Lubrication monitor B-1 (without lamp display)
• CE mark and EMC
• Application for IEC standard
• Double chuck operation pedal
• Touch setter M
• OSP-P300L CNC Controller

 Status indicator lamp is 2-layer type
