With OSP-P300L CNC CONTROLLER INCLUDING CE-MARK & EMC

מחרטה ממוחשבת תוצרת OKUMA, יפן

European Standard Specification

  • Main spindle motor, PREX 22/15kW
  • Spindle speed, 45 - 5,000 min-1
  • Spindle, JIS A2-6, bore dia. 80 mm, built-in integral motor
  • V12 VDI turret, Non-lift NC turret (No tool holders included)
  • Dead sleeve type NC tailstock, MT No.5 (For model C500 / C1000 only)
  • Coolant supply system, 250W pump motor
  • Work light, water-proof fluorescent lamp
  • Totally enclosed swarf & coolant shield
  • Door interlock
  • Chip pan, side chip disposal
  • Foundation washers and leveling jack screws
  • Machine lifting hooks
  • 8" hydraulic solid chuck N-08-A06-01A, hydraulic hollow cylinder SS1452, and draw bar
  • Revolving center MT No.5 (For model C500 / C1000 only)
  • Chuck auto open / close by M-code with confirmation
  • Lubrication monitor B-1 (without lamp display)
  • CE mark and EMC
  • Extended guideway for steady rest (For model C1000 only)
  • IEC standard
  • Double type chuck operation pedal
  • Touch setter M
  • OSP-P300L CNC Controller with 15" colour display, touch panel
  • OSP-P300L Advanced One Touch IGF-E kit specifications

Max machining diametermm410
Max machining lengthmm 500
Spindle nose type
JIS A2-6
Speed Rangemin⁻¹45~5,000
Rapid traverse X-Zm/min (ipm)25/30 (984/1,181)
Standard PowerkW (hp)22/15 (30/20)
Machine WeightKgLB3000EX C=500: 4400
C=1000:6000

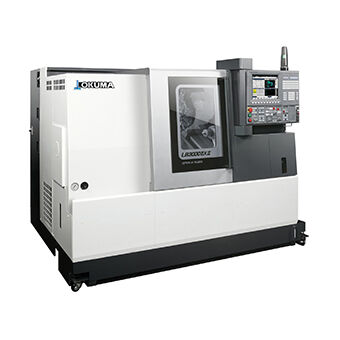

LB-3000-EX
