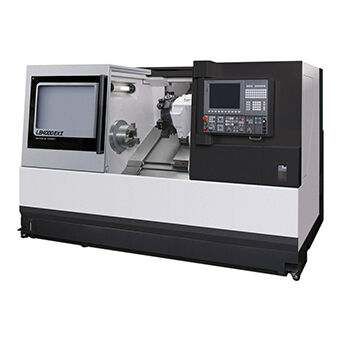

LB-4000-EX

With OSP-P300L CNC Controller Including CE-Mark

מחרטה ממוחשבת תוצרת OKUMA, יפן

Main spindle motor, PREX 30/22kW
Spindle speed, 42 - 4,200 min-1
Spindle, bore dia. 91mm, JIS A2-8, built-in integral spindle motor
V12 VDI turret, Non-lift NC turret (No tool holders included)
Dead center type NC tailstock, MT No.5 (For model C750 / C1500 / C2000 only)
Coolant supply system, 250W pump motor
Work light, water-proof fluorescent lamp
Totally enclosed swarf & coolant shield
Door interlock
Chip pan, side chip disposal
Foundation washers and leveling jack screws
Machine lifting hooks
10" hydraulic solid chuck N-10-A08-01A, hydraulic hollow cylinder SS1770, and draw bar
Revolving center MT No.5 (For model C750 / C1500 / C2000 only)
Chuck auto open / close by M-code with confirmation
Lubrication monitor B-1
CE mark and EMC
Extended guideway for steady rest (For model C1500 / C2000 only)
IEC standard
Double type chuck operation pedal
Touch setter M
OSP-P300L CNC Controller
