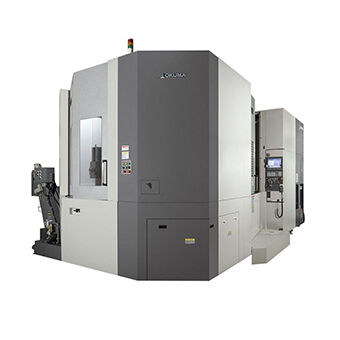

MB-10000H

With OSP-P300MA and European Standard Accessories

מכונת כרסום הוריזונטלית תוצרת OKUMA, יפן

STANDARD SPECIFICATION:

Rapid traverse in X/Y/Z-axis; 50 m/min.
Max acceleration in rapid traverse: 0.7G in X, Y-axis
Ball screw cooling (X, Y and Z axis)
Spindle cooling system
ATC air blower
Chip air blower, nozzle type
Totally enclosed guard
Hand tools
Tool release lever (BT50)
Spindle taper hole cleaning rod
Work light, Fluorescent light
Two-layer signal tour (Blue; operation end lamp / Yellow; Alarm lamp)
Foundation washers
Cutting feedrate in X/Y/Z-axis; Max. 50 m/min
Main spindle speed, max. 6,000 min-1
Main spindle motor, VAC 30/22 kW (10 min./cont.)
40-tool ATC
2-pallet swivel type APC (with two sets of MAS pallets)
Pallet size 1000mm x 1000mm
Pallet 1 degree indexing
Tool pull stud bolt standard; MAS BT50 / MAS2 Through Pull stud type
Internal chip conveyor, Floor type
Chip pan
Spindle-through-coolant supply system, 1.5MPa
Coolant supply system, 860L (Effective 520L) tank and 390W pump
TAS-S
TAS-C
CE Mark and EMC
IEC standard
Electrical Power Source Application to suite local power source at each countries (CE transformer)

OSP-P300MA CNC Controller
