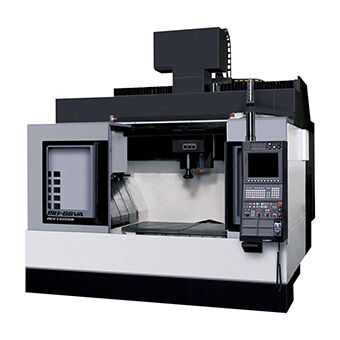

MB-66VA
אלבה > מוצרים וספקים > ייצוג חברות > מכונות מבית OKUMA > מכונות כרסום > מכונות כרסום ורטיקאליות > סדרת MB-V > MB-66VA
With OSP- P300M
מכונת כרסום, מרכז עיבוד ורטיקאלי - תוצרת OKUMA
- Main spindle motor VAC 11/7.5kW (10 min./cont.)
- Main spindle NT40 (dia. 70mm)
- Main spindle speed, 50 - 8,000min-1, Max Torque: 198N-m
- Rapid traverse speed: 40m/min. in X / Y-axis and 32m/min. in Z-axis
- Cutting feedrate; max. 32m/min.
- Hydraulic power pack for the tool unclamping only
- Coolant supply system, 220L (Effective 120L) tank and 0.25kW pump motor
- ATC air blower
- ATC specification: MAS BT40 + JIS Special pull stud
- Chip air blower, nozzle type
- Screw type chip conveyor, 0.1kw x 2pcs
- Chip pan
- Status indicator lamp, 2-layer type (Blue: Operation end lamp / Yellow: Alarm lamp)
- Foundation washers
- 20-tool ATC
- Totally enclosed guard (CE mark application)
- Through-the-spindle coolant supply system, middle pressure 1.5MPA / 12L/min / BT40(Pulstud bolt std.: JIS)
- Remark: After #0022 machines,above spec are standard. But until #0021 machines are 1.5MPA/12L/min .
- Pre-arrange for Lift-up chip conveyor floor type (incl. Harting socket for Mayfran & standard chip pan) Pre-arrange Chip Conveyor M-A type
- Remark: After Feb/02 prod machines,above spec are standard. But until Jan/02 prod machines are not including any Harting socket & I/F.
- Spindle head cooling with oil controller
- CE-mark / EMC
- IEC regulation
- OSP-P300M CNC Controller with 15" colour display, touch panel
- OSP-P300M 3D-E kit specifications
- Auto program schedule update
- Work coordinate system selection, 100 sets
- Helical cutting function
- Synchronized tapping II
- Programmable travel limit
- Arbitrary angle chamfering
- 200 sets each of tool length offset and cutter radius compensation
- Tool life management function
- Auto power shutoff function
- Sequence stop
- 3D simulation function
- Interactive MAP function (I-MAP)
- Program storage capacity, 2GB in tape length
- Simple load monitor
- NC operation monitor
| Max Machining Volume | mm | 1500 x 660 x 660 |
| Table Size | mm | 1,530 x 660 |
| Spindle Speed | min-1 | 50-8,000 |
| Spindle Motor Power | kW (hp) | 11/7.5 |
| Rapid Traverse | mm | 40 / 32 |
| Magazine Capacity | 20 | |
| Machine Weight | Kg | 11,000 - 11,200 |
