WITH OSP-P300MA-H CNC CONTROLLER INCLUDING CE-MARK

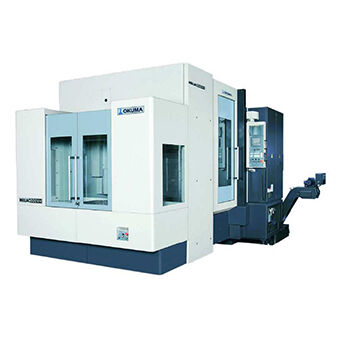

מרכז עיבוד 5 צירים, תוצרת Okuma, יפן



EUROPEAN STANDARD SPECIFICATIONS:
Okuma Pallet

  • Pallet size: 800x800 mm Automatic pallet changer (2-APC)
  • Main spindle motor VAC 22 / 18.5 kW (30 min./cont.)
  • Main spindle NST No.50 BT-BIG-PLUS
  • Main spindle speed, 100 - 10,000 min-1, Max Torque : 21N-m
  • Oil mist lubrication for spindle
  • Spindle air curtain
  • "Rapid traverse speed: 30 m/min. in X / Y/ Z-axis
  • 3,600 deg/min. in A/C-axis"
  • "Cutting feedrate; X,Y,Z-axis max. 12 m/min.
  • A-axis max. 2,400 deg/min, C-axis max. 2,400 deg/min"
  • Hydraulic power unit
  • Through spindle coolant, 3.5Mpa with Bag filter, separate tank
  • Coolant supply system, 1200 L tank and 1.1 kW pump motor
  • Coolant level detection (lower)
  • ATC air blower
  • ATC specification: MAS403 BT50 + MAS407 P50T-2
  • Coil type chip conveyor 2pcs
  • Lift-up chip conveyor (Hinge+Scraper+Drum filter type)
  • Status indicator lamp, 2-steps C-type
  • Foundation washers
  • 80-tool ATC, Follow pin type
  • Totally enclosed guard with ceiling (CE mark application)
  • Spindle head cooling with oil controller
  • CE-mark / EMC
  • IEC regulation
  • Scale feed back for A / C-axis
  • Door interlock
  • Work light, fluorescent lamp
  • Alarm and Operation end buzzer
  • Transformer

OSP-P300MA-H CNC Controller

Simultaneous 5 axis machining kit

  1. Super NURBS for 5 axis
  2. Tool length offset in the tool axis direction
  3. Tool center point control II (incl. tool posture command)
  4. Tool side offset



Table Dimensionsmm 800x800
Travel X/Y/ZmmX-Axis: 1,020
  Y-Axis: 1,020
  Z-Axis: 1,020
Max LoadKg1,000
Rapid Traverse (X/Y/Z)mm/min (ipm)X / Y Axis: 30,000
  Z-Axis: 30,000
Rapid Traverse (A/C)deg/min1~3,600
Spindle Speedmin⁻¹100~10,000
Spindle PowerkW (hp)18.5 / 22
Machine WeightKg22,000
